Underground Mining Dump Trucks · 8 t

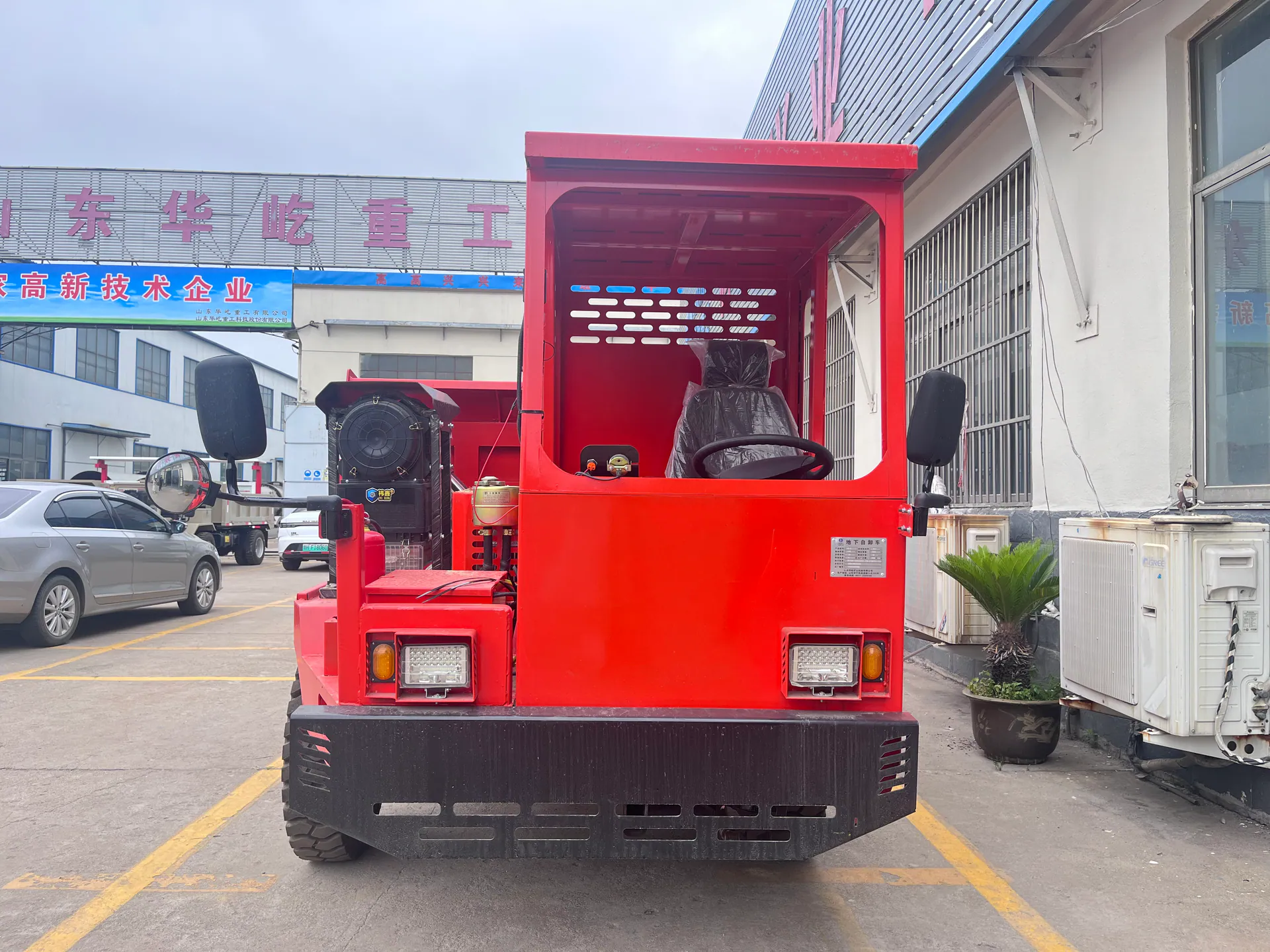

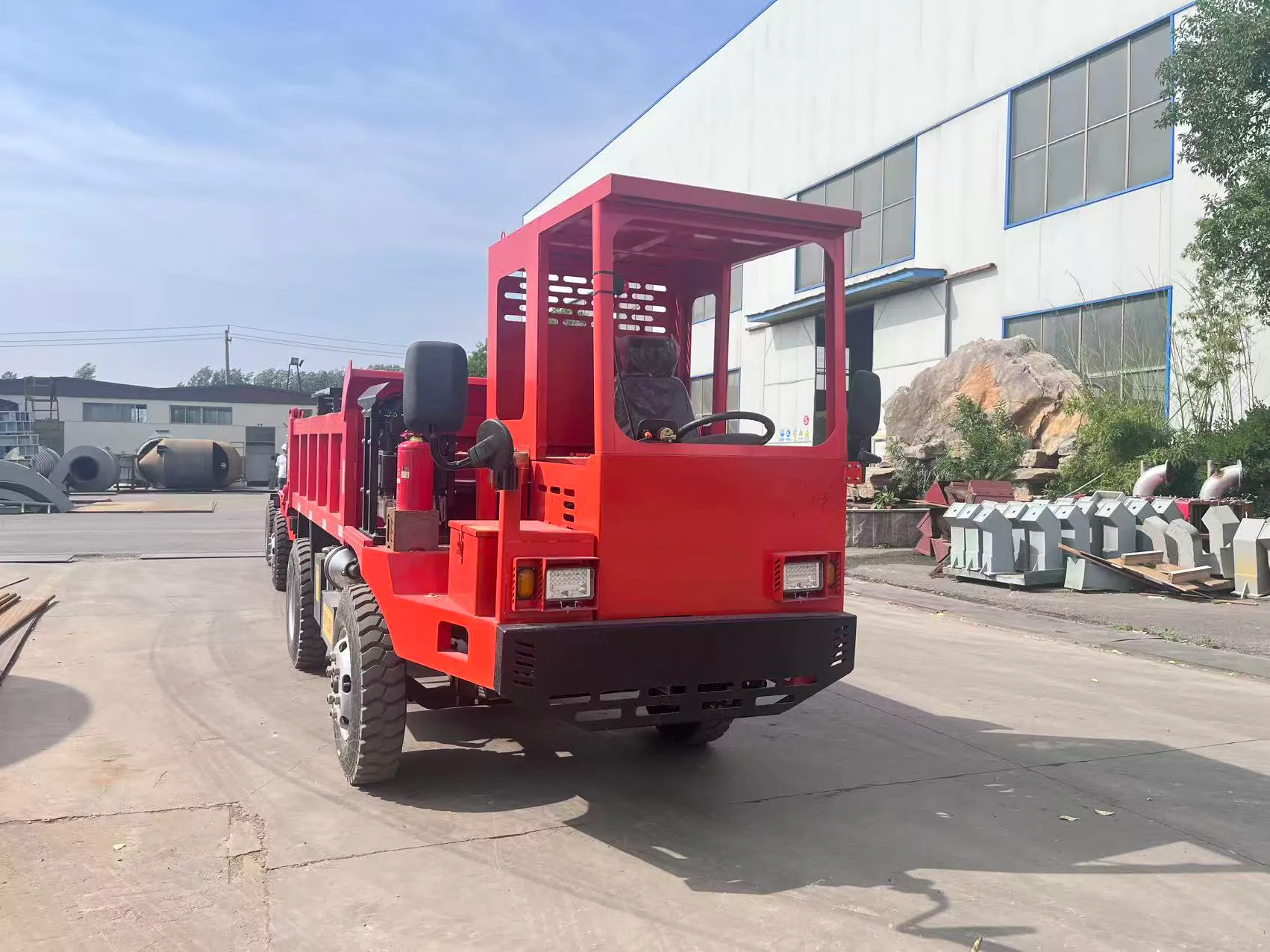

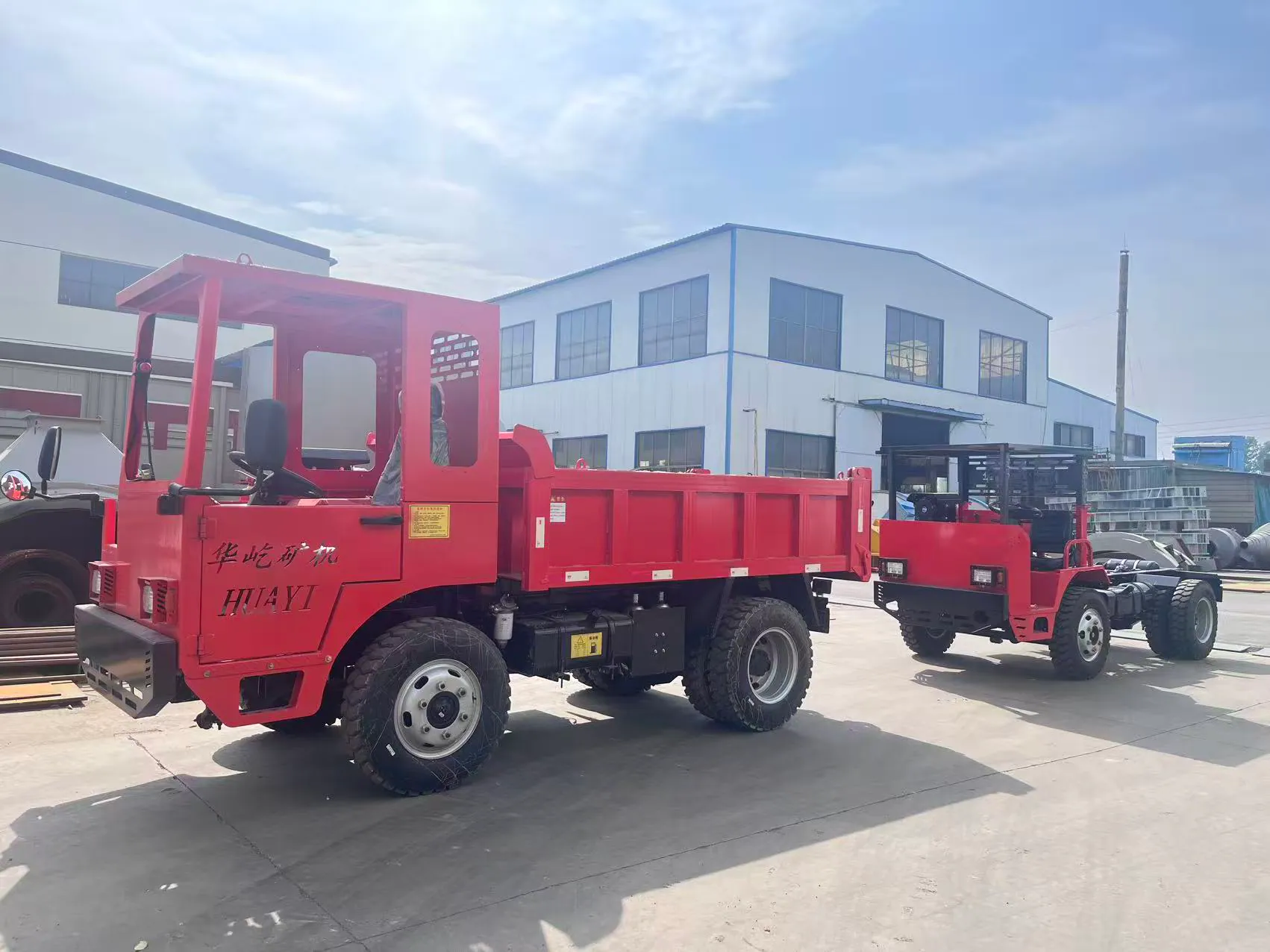

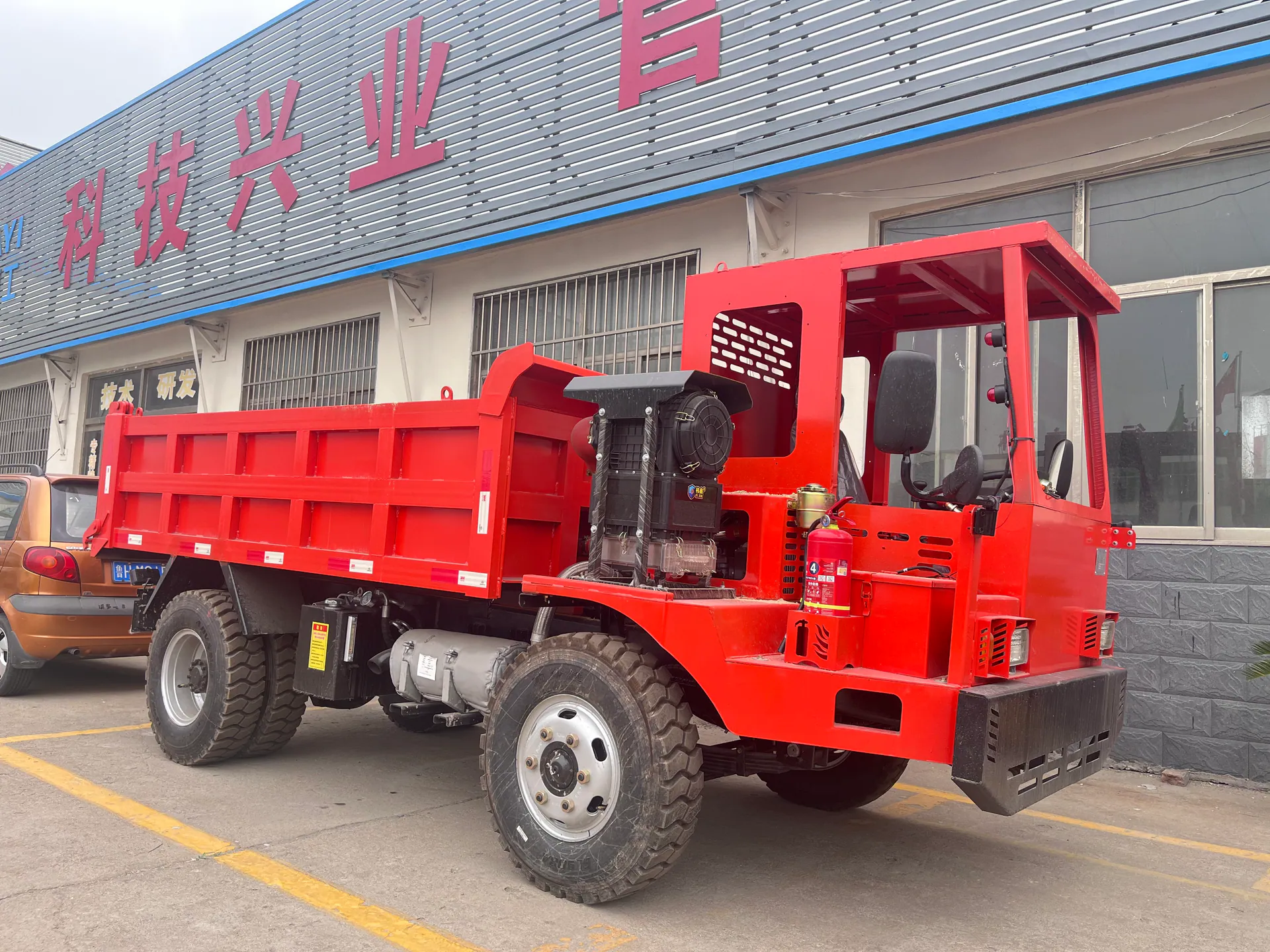

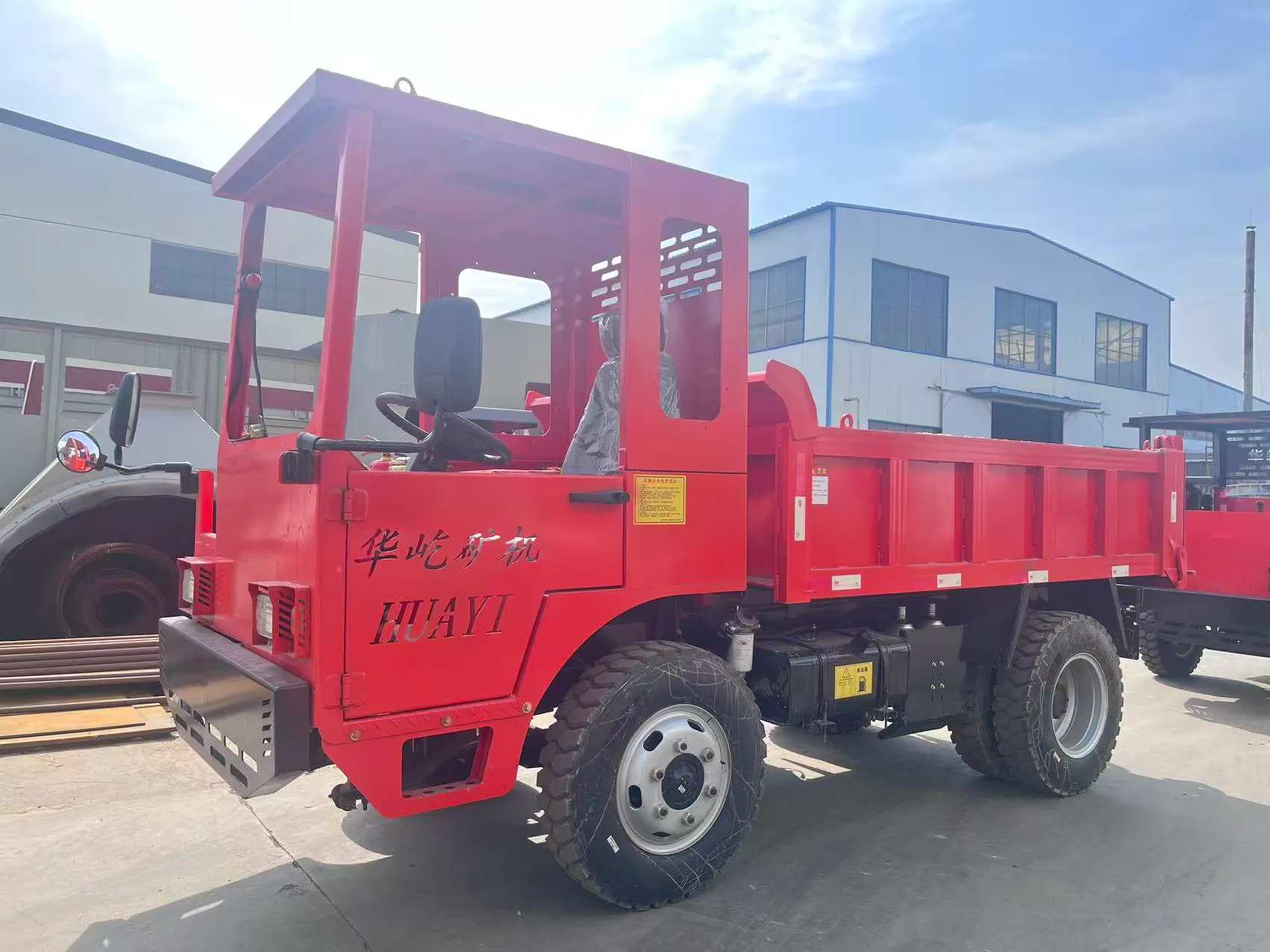

8 t Underground Mining Dump Truck
Rated for an 8,000 kg payload, this truck is available with rear-wheel drive (RWD) or four-wheel drive (4WD). Compare the configurations below, then tell HUAYI about the conditions at your site.
RWD selected. The gallery remains unchanged.
8 t · RWD / 4WD
Technical Specifications
Compare the RWD and 4WD specifications side by side. Choose a drive configuration to update the key figures and inquiry form.
General Specifications08 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Overall dimensions | 4,700 × 1,850 × 2,000 | 4,700 × 1,850 × 2,000 |
| Rated payload | 8,000 kg | 8,000 kg |
| Curb weight | 3,600 kg | 3,900 kg |
| Minimum ground clearance | 170 mm | 170 mm |
| Maximum gradeability (loaded) | 14° | 14° |
| Approach angle | 22° | 22° |
| Wheelbase | 2,450 mm | 2,450 mm |
| Minimum outer turning radius | 6,200 mm | 6,200 mm |
No configuration differences in this section.
Cargo Body07 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Cargo box dimensions / volume | 3,000 × 1,800 × 600; 2.8 m³ | 3,000 × 1,800 × 600; 2.8 m³ |
| Cargo box type | Rectangular straight dump body | Rectangular straight dump body |
| Floor plate thickness | 8 mm | 8 mm |
| Side plate thickness | 6 mm | 6 mm |
| Loading height | 1,650 mm | 1,650 mm |
| Maximum dump height | 3,200 mm | 3,200 mm |
| Chassis height | 900 mm | 900 mm |
No configuration differences in this section.
Engine & Powertrain07 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Engine make / model | Yunnei 4102QB | Yunnei 4102QB |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Rated power / speed | 70 kW @ 3,100 rpm | 70 kW @ 3,100 rpm |
| Transmission | Wanliyang 545 gearbox | Shangkun 546 integrated transmission |
| Air intake | Integrated cyclone air filter assembly | Integrated cyclone air filter assembly |
| Exhaust treatment | Three-way catalytic converter + water filter | Three-way catalytic converter + water filter |
| Diesel tank dimensions / capacity | 660 × 340 × 280 / 55 L | 660 × 340 × 280 / 55 L |
No configuration differences in this section.
Chassis & Axles07 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Front axle | 1061-720 / 1.8 m · Wanteng | 2069-700 / 1.8 m · Liansheng |
| Rear axle | 1098-720 / 1.8 m · Wanteng | 1098-720 / 1.8 m · Wanteng |
| Frame | Welded; 160 × 60 × t8 | Welded; 160 × 60 × t8 |
| Front leaf springs | 13 mm × 75 mm × 7 leaves | 13 mm × 75 mm × 7 leaves |
| Rear leaf springs | 13 mm × 75 mm × 7 + 5 leaves | 13 mm × 75 mm × 7 + 5 leaves |
| Tire make / type | Kunlun / Qianjin; all-steel radial | Kunlun / Qianjin; all-steel radial |
| Tire size / rating | 7.50R16 / 14PR | 7.50R16 / 14PR |
No configuration differences in this section.
Cab & Controls02 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Cab / roof configuration | Mining safety canopy / single-seat cab (optional) | Mining safety canopy / single-seat cab (optional) |
| Steering system | Hydraulic power steering | Hydraulic power steering |
No configuration differences in this section.
Hydraulic & Brake Systems04 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Dumping system | Rear dual cylinders; 3-stage; 110–950 mm | Rear dual cylinders; 3-stage; 110–950 mm |
| Service brake | Air brakes / wet disc brake | Air brakes / wet disc brake |
| Wet-disc brake arrangement | Normally closed; spring applied; hydraulic release | Normally closed; spring applied; hydraulic release |
| Hydraulic oil tank dimensions / capacity | 270 × 290 × 370 / 25 L | 270 × 290 × 370 / 25 L |
No configuration differences in this section.
Configuration Guidance
Built Around Your Operating Conditions
Share these details so HUAYI can understand your site and discuss a suitable configuration.
Tunnel Dimensions
Provide the available width and height, turning space, and any restricted sections.
Clearances · Turning spaceRoad & Gradient
Describe the route surface, gradients, ramp lengths, and key stopping or turning points.
Route surface · Grade · LengthMaterial & Payload
Identify the material, target payload, and loading method used at your site.
Material · Payload · LoadingConfiguration Needs
Note your preferred drive, quantity, destination, or if you would like guidance.
Drive · Quantity · Destination
Manufacturing Capabilities
Built with Manufacturing Expertise
HUAYI’s production capabilities include CNC machining, laser cutting, automatic welding, CNC bending and a coating line.
Explore ManufacturingRelated Equipment
Explore Other Payload Options
Browse trucks with payload ratings close to 8 t.
Request a Quote for This Truck
Tell us which drive configuration you are considering and describe the conditions at your site.
