Underground Mining Dump Trucks · 10 t

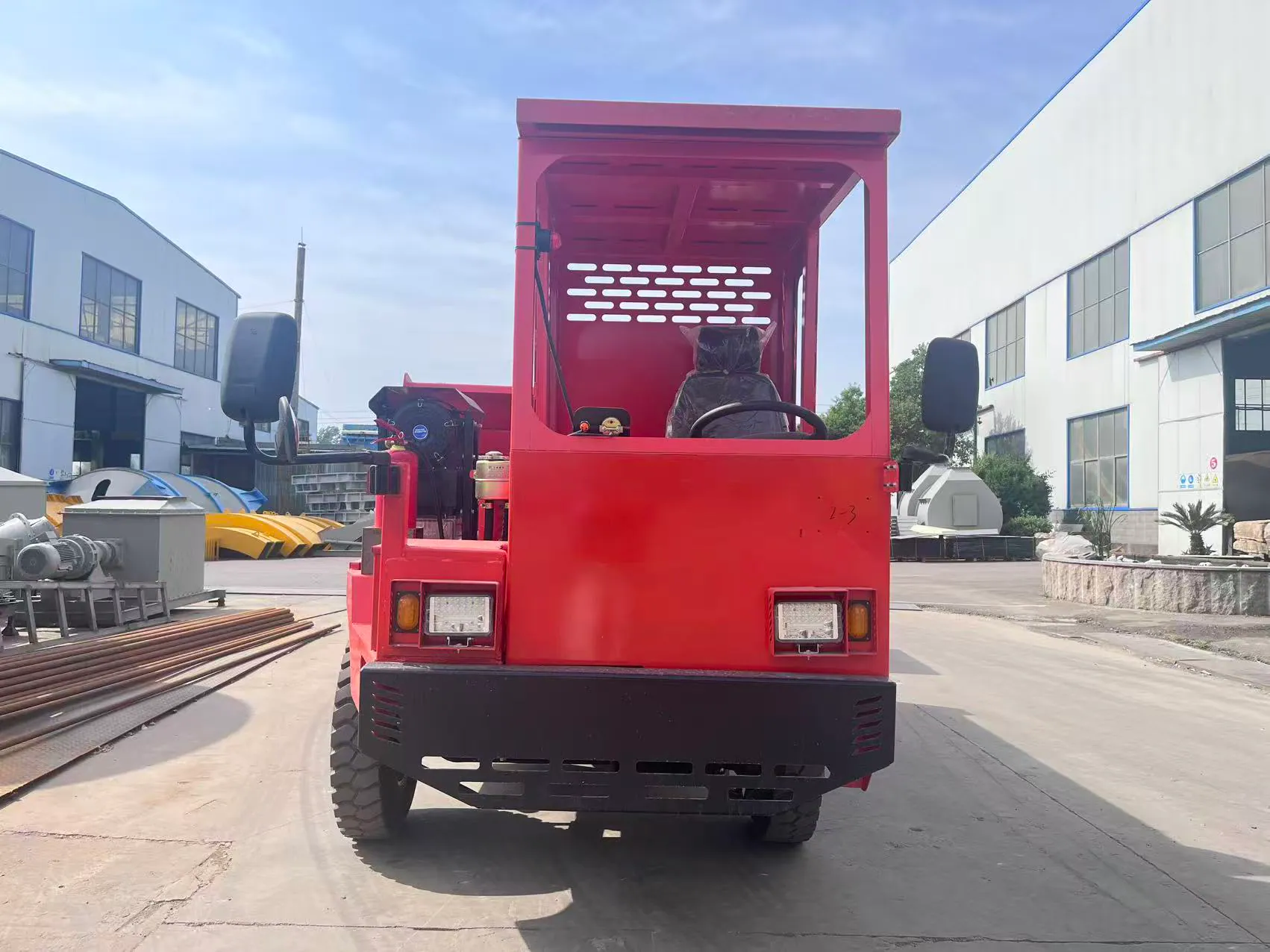

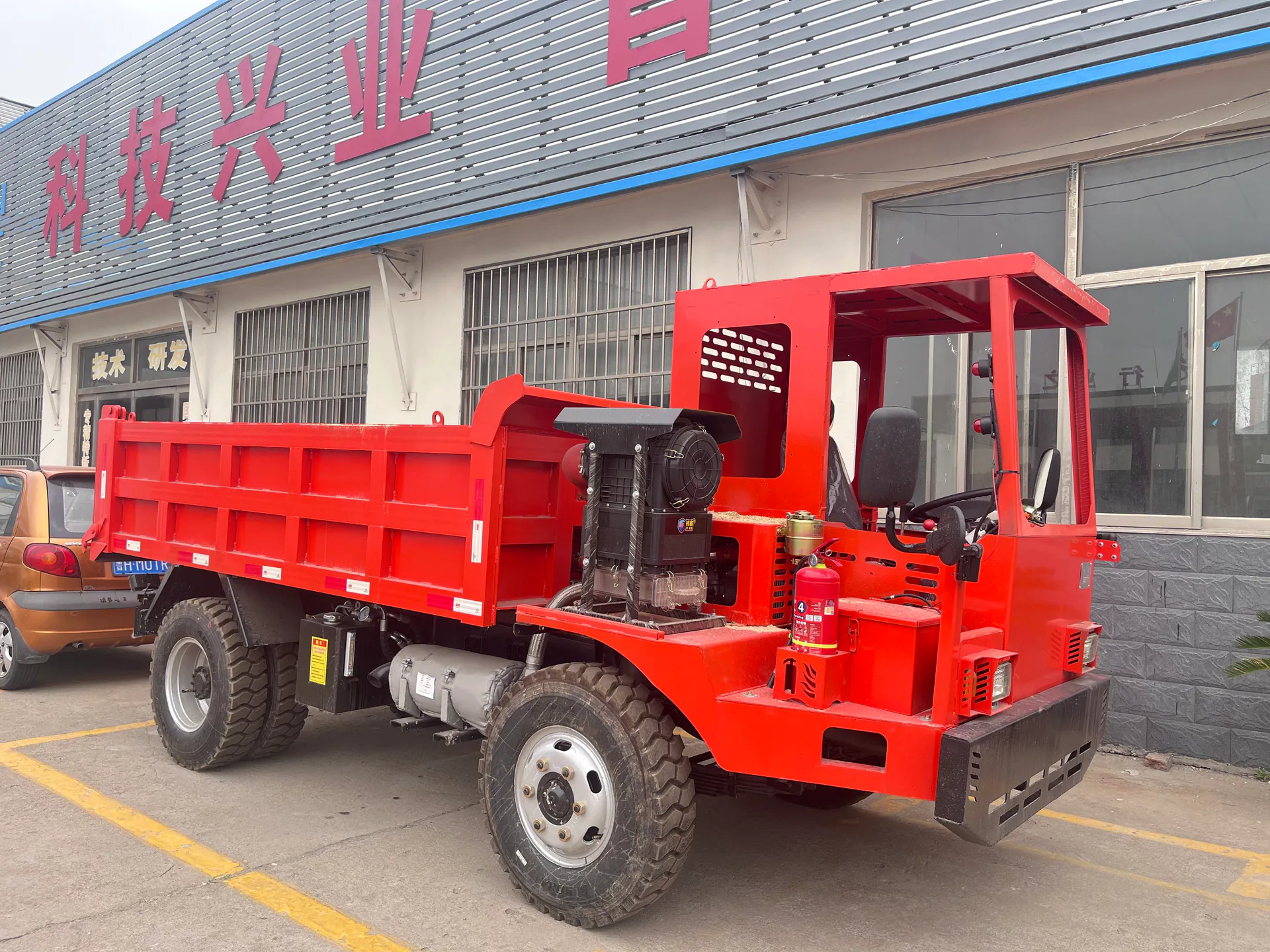

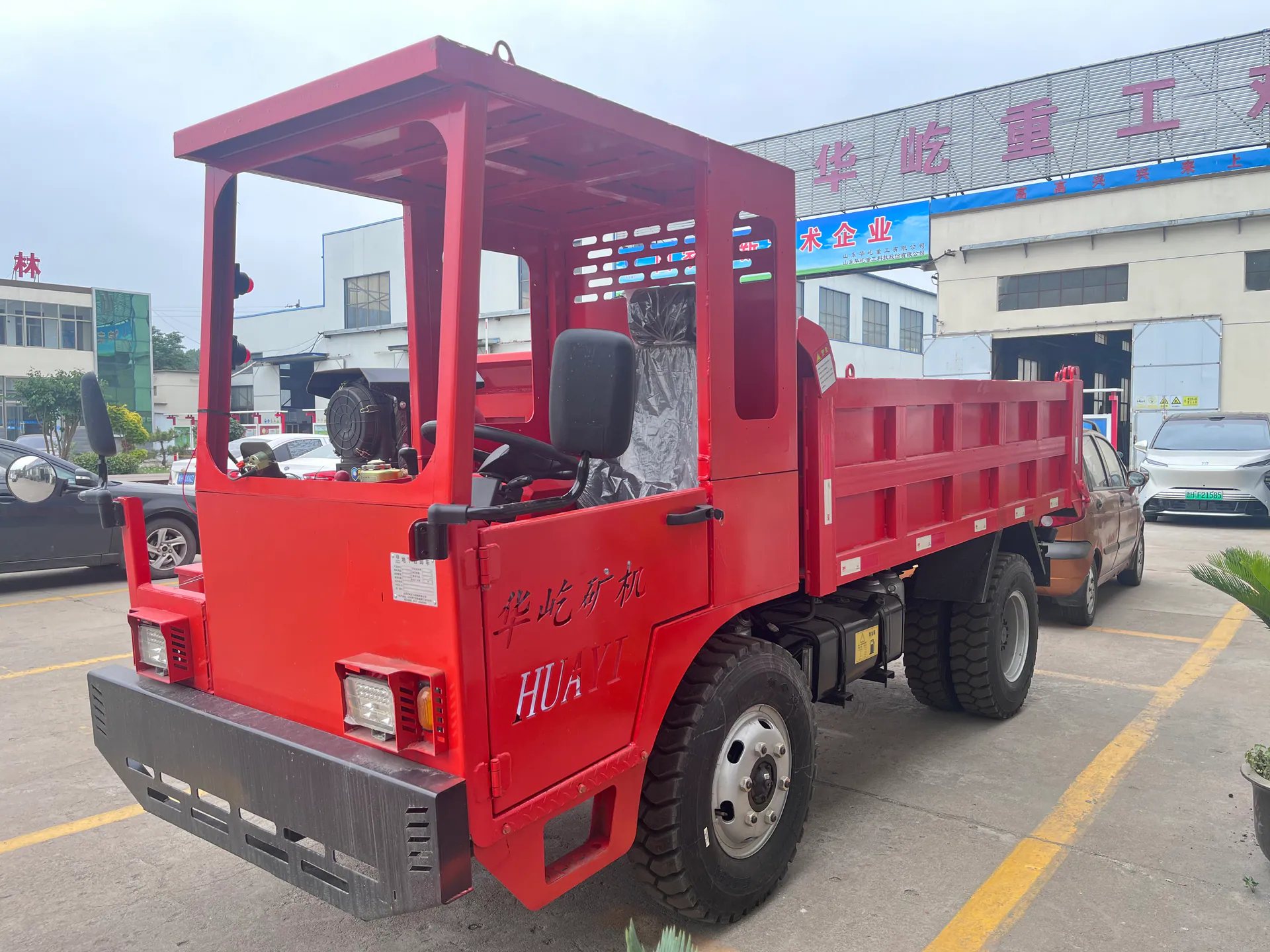

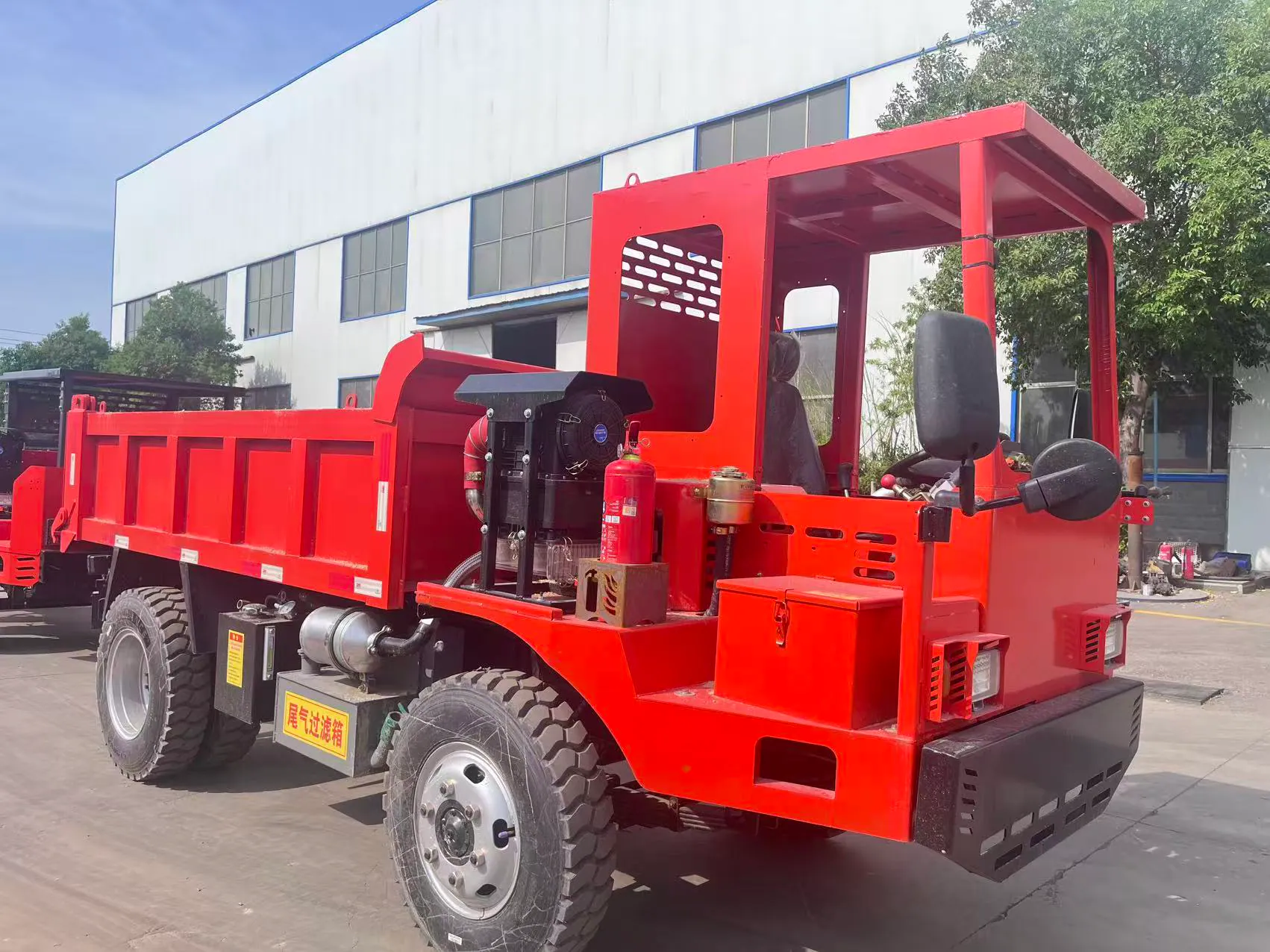

10 t Underground Mining Dump Truck
With a rated payload of 10,000 kg, this truck is available with rear-wheel drive (RWD) or four-wheel drive (4WD). Compare the configurations below, then tell HUAYI about the conditions at your site.
RWD selected. The gallery remains unchanged.
10 t · RWD / 4WD
Technical Specifications
Compare the RWD and 4WD specifications side by side. Choose a drive configuration to update the key figures and inquiry form.
General Specifications08 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Overall dimensions | 4,900 × 1,850 × 2,050 | 4,900 × 1,850 × 2,050 |
| Rated payload | 10,000 kg | 10,000 kg |
| Curb weight | 3,900 kg | 4,200 kg |
| Minimum ground clearance | 170 mm | 170 mm |
| Maximum gradeability (loaded) | 14° | 14° |
| Approach angle | 22° | 22° |
| Wheelbase | 2,500 mm | 2,450 mm |
| Minimum outer turning radius | 6,300 mm | 6,300 mm |
No configuration differences in this section.
Cargo Body06 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Cargo box dimensions / capacity | 3,200 × 1,800 × 600 (3 m³) | 3,200 × 1,800 × 600 (3 m³) |
| Floor / side plate thickness | Floor: 8 mm; sides: 6 mm | Floor: 8 mm; sides: 6 mm |
| Cargo box type | Rectangular straight dump body | Rectangular straight dump body |
| Loading height | 1,650 mm | 1,650 mm |
| Maximum vehicle height during dumping | 3,300 mm | 3,300 mm |
| Chassis height | 900 mm | 900 mm |
No configuration differences in this section.
Engine & Powertrain06 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Engine make / model | Yunnei / ① 4102QBZ; ② YN4EL120-30CR (China III) | Yunnei / ① 4102QBZ; ② YN4EL120-30CR (China III) |
| Rated power / speed | ① 81 kW @ 3,000 rpm; ② 88 kW @ 2,400 rpm | ① 81 kW @ 3,000 rpm; ② 88 kW @ 2,400 rpm |
| Transmission make / model | Wanliyang 545 gearbox | Shangkun 546 integrated transmission |
| Air intake system | Integrated cyclone air-filter assembly | Integrated cyclone air-filter assembly |
| Exhaust treatment | Three-way catalytic converter + water filter | Three-way catalytic converter + water filter |
| Diesel tank dimensions / capacity | 660 × 340 × 280 / 55 L | 660 × 340 × 280 / 55 L |
No configuration differences in this section.
Chassis & Axles07 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Front axle | 1061-720 / 1.8 m · Wanteng | 2069-700 / 1.8 m · Liansheng |
| Rear axle | 1098-720 / 1.8 m · Wanteng | 1098-720 / 1.8 m · Wanteng |
| Frame type / specification | Welded; 160 × 60 × t8 | Welded; 160 × 60 × t8 |
| Front leaf springs | 13 thick × 75 wide × 7 leaves | 13 thick × 75 wide × 7 leaves |
| Rear leaf springs | 13 thick × 75 wide × 7 + 5 leaves | 13 thick × 75 wide × 7 + 5 leaves |
| Tire make / type | Kunlun / Qianjin; all-steel radial tire | Kunlun / Qianjin; all-steel radial tire |
| Tire size / ply rating | 7.50R16 / 14PR | 7.50R16 / 14PR |
No configuration differences in this section.
Cab & Controls02 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Cab type | Mining safety canopy / single-seat cab (optional) | Mining safety canopy / single-seat cab (optional) |
| Steering system | Hydraulic steering gear | Hydraulic steering gear |
No configuration differences in this section.
Hydraulic & Brake Systems04 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Dumping system type / model / stroke | Rear dual cylinders; 3-110; 950 mm | Rear dual cylinders; 3-110; 950 mm |
| Service brake | Air-loss brake / wet-disc brake | Air-loss brake / wet-disc brake |
| Wet-disc brake arrangement | Normally closed; spring applied; hydraulically released | Normally closed; spring applied; hydraulically released |
| Hydraulic oil tank dimensions / capacity | 270 × 290 × 370 / 25 L | 270 × 290 × 370 / 25 L |
No configuration differences in this section.
Configuration Guidance
Built Around Your Operating Conditions
Share these details so HUAYI can understand your site and discuss a suitable configuration.
Tunnel Dimensions
Provide the available width and height, turning space, and any restricted sections.
Clearances · Turning spaceRoad & Gradient
Describe the route surface, gradients, ramp lengths, and key stopping or turning points.
Route surface · Grade · LengthMaterial & Payload
Identify the material, target payload, and loading method used at your site.
Material · Payload · LoadingConfiguration Needs
Note your preferred drive, quantity, destination, or if you would like guidance.
Drive · Quantity · Destination
