Underground Mining Dump Trucks · 6 t

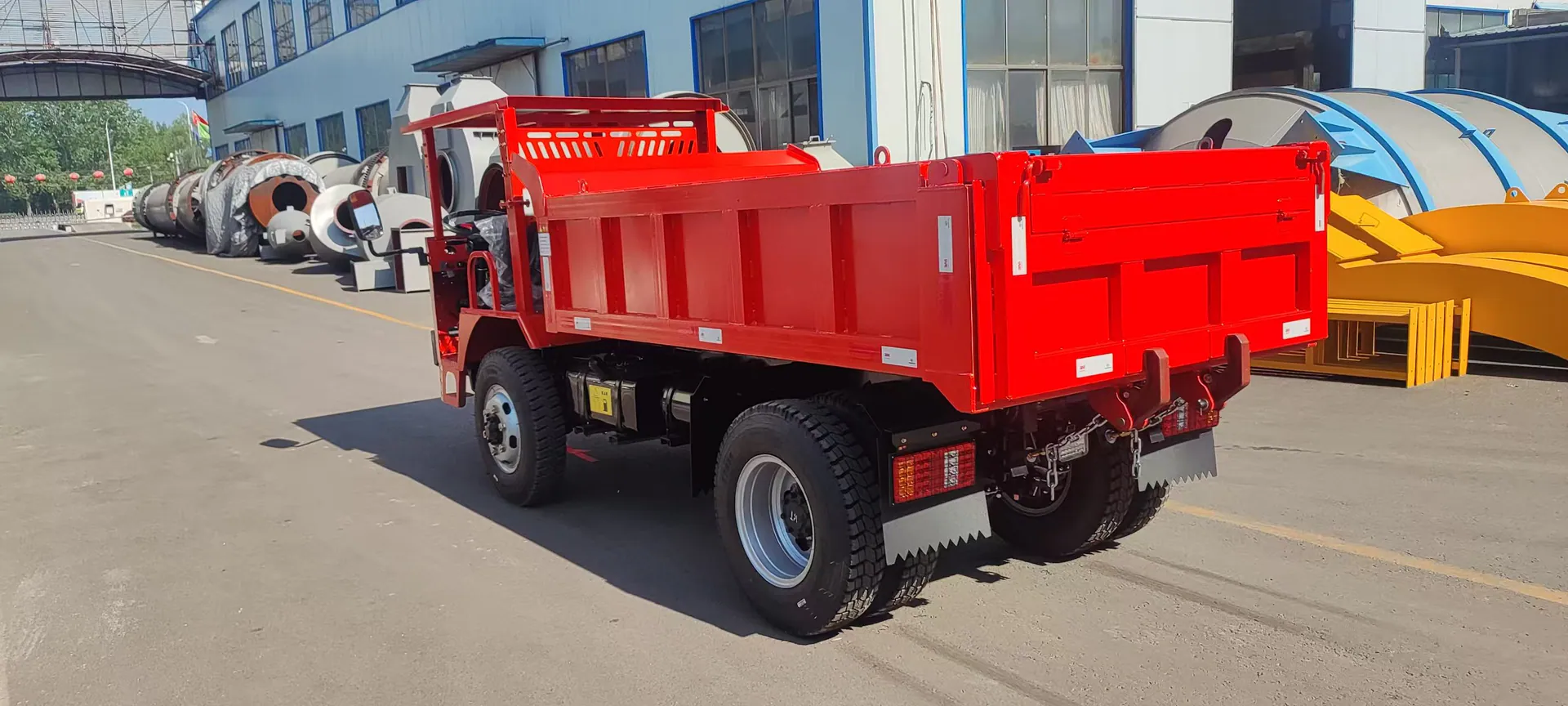

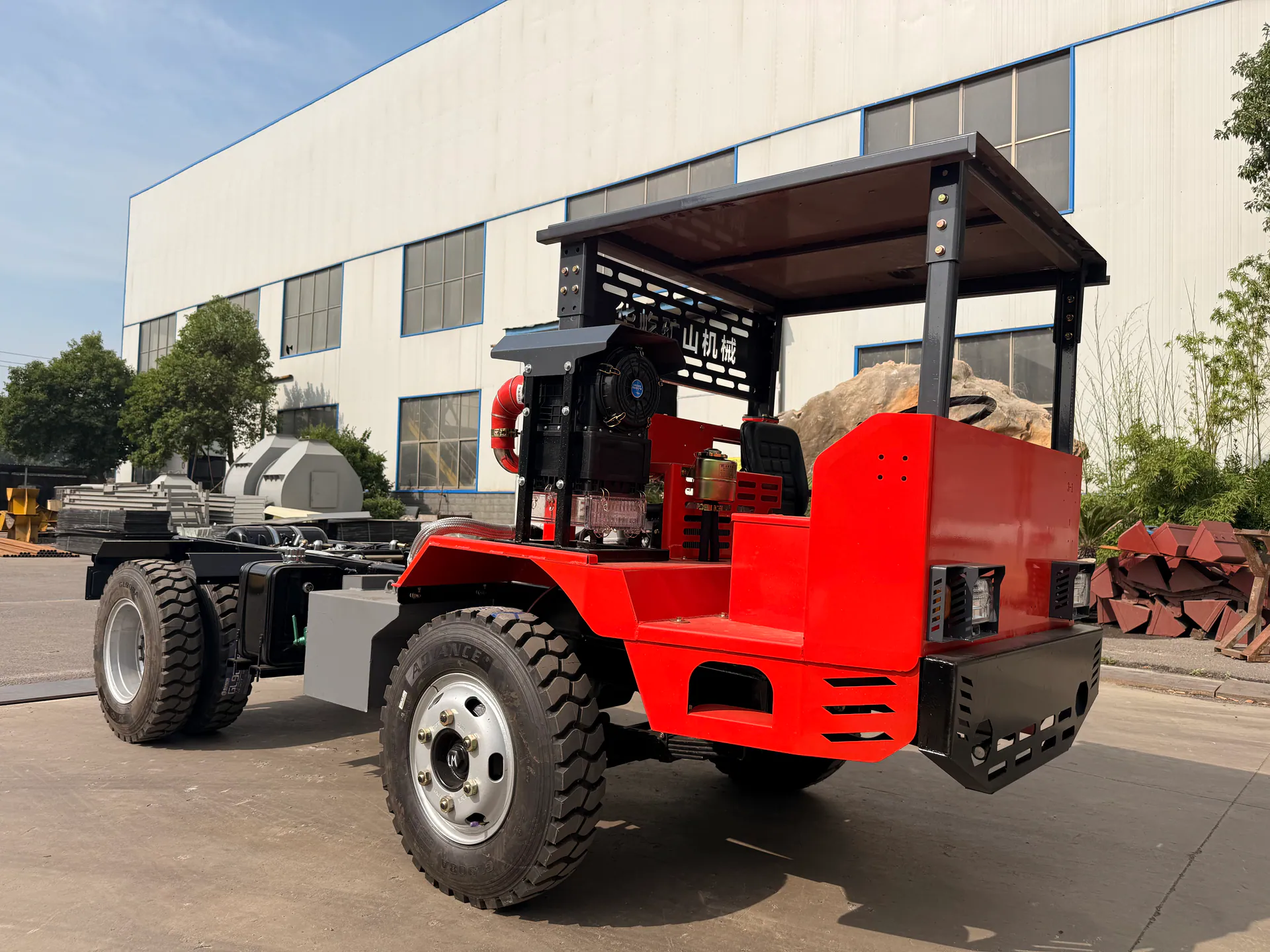

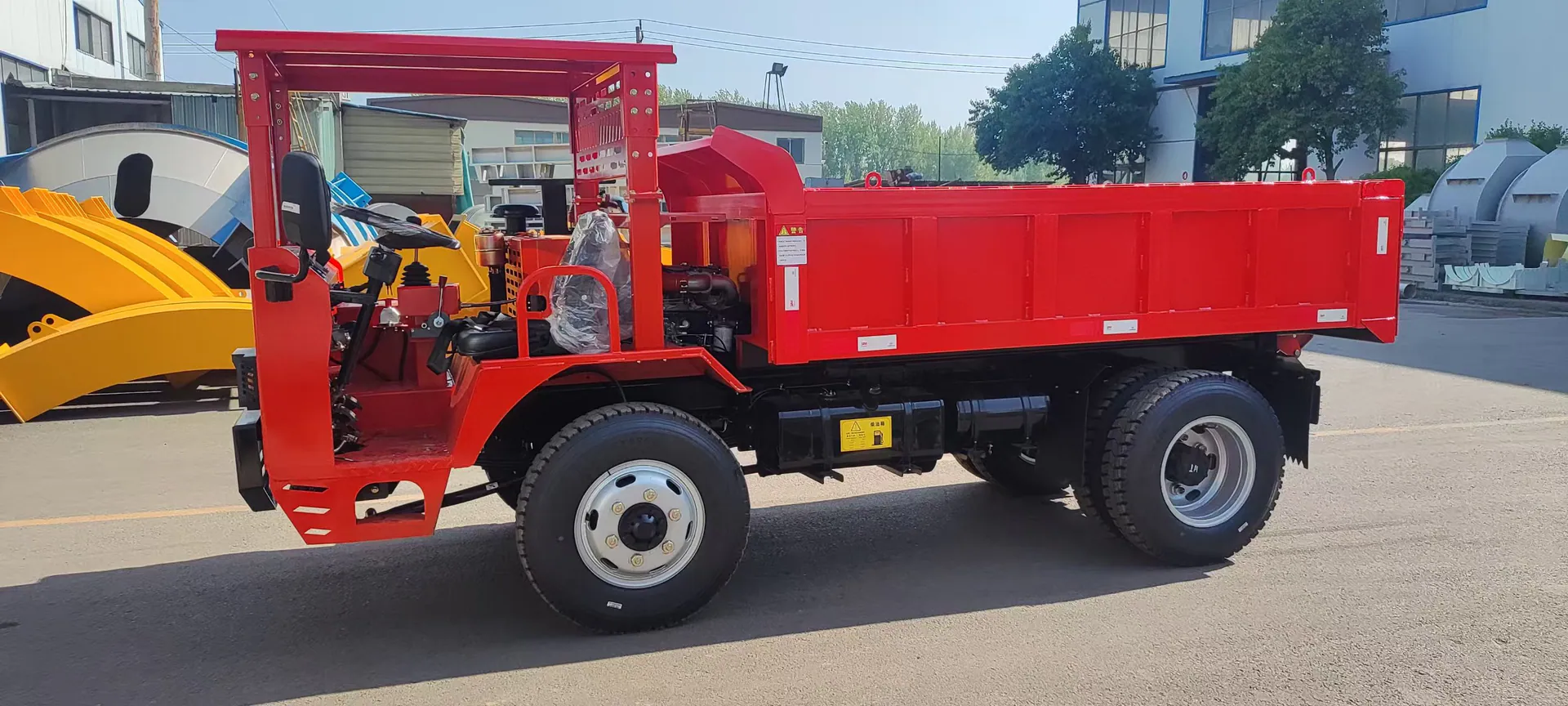

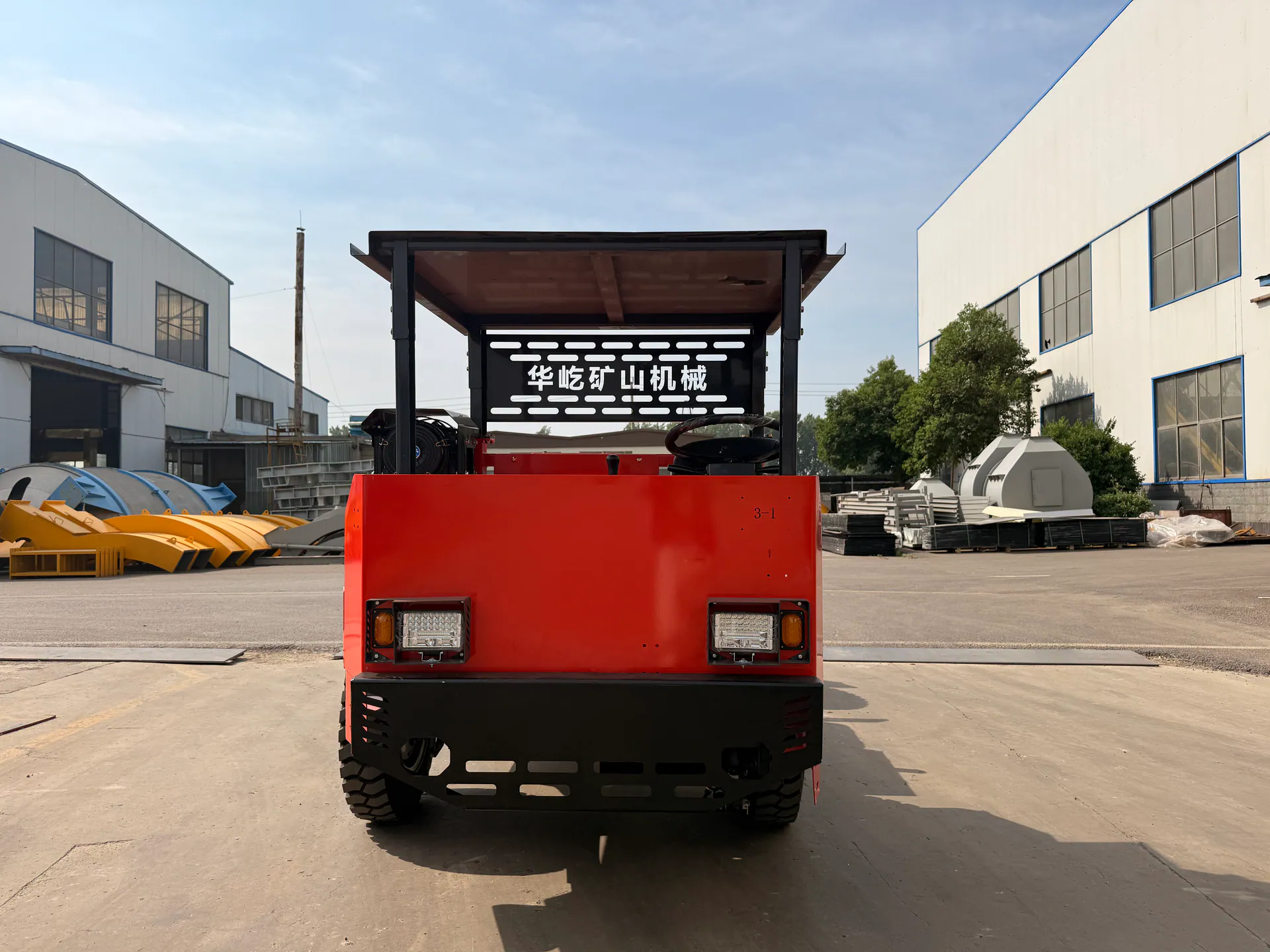

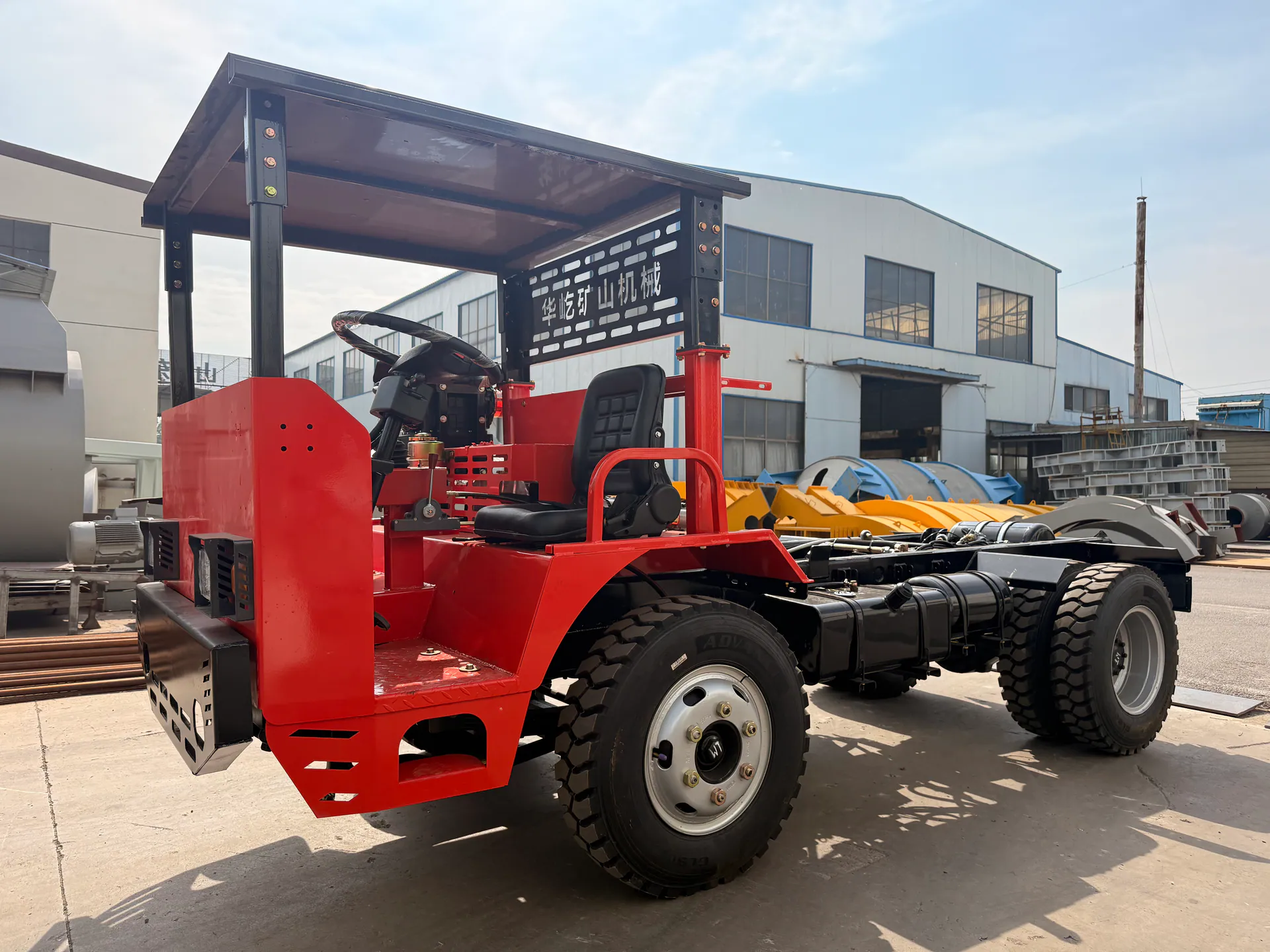

6 t Underground Mining Dump Truck
With a rated payload of 6,000 kg, this truck is available with rear-wheel drive (RWD) or four-wheel drive (4WD). Compare the configurations below, then tell HUAYI about the conditions at your site.
RWD selected. The gallery remains unchanged.
6 t · RWD / 4WD
Technical Specifications
Compare the RWD and 4WD specifications side by side. Choose a drive configuration to update the key figures and inquiry form.
General Specifications08 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Overall dimensions | 4,500 × 1,600 × 1,950 | 4,500 × 1,700 × 1,950 |
| Rated payload | 6,000 kg | 6,000 kg |
| Curb weight | 3,200 kg | 3,500 kg |
| Minimum ground clearance | 170 mm | 170 mm |
| Maximum gradeability (loaded) | 14° | 14° |
| Approach angle | 22° | 22° |
| Wheelbase | 2,320 mm | 2,320 mm |
| Minimum outer turning radius | 6,000 mm | 6,000 mm |
No configuration differences in this section.
Cargo Body06 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Cargo box dimensions / capacity | 2,800 × 1,600 × 550 (2.3 m³) | 2,800 × 1,600 × 550 (2.3 m³) |
| Floor / side plate thickness | Floor: 8 mm; sides: 6 mm | Floor: 8 mm; sides: 6 mm |
| Cargo box type | Rectangular straight dump body | Rectangular straight dump body |
| Loading height | 1,500 mm | 1,500 mm |
| Maximum vehicle height during dumping | 3,000 mm | 3,000 mm |
| Chassis height | 850 mm | 850 mm |
No configuration differences in this section.
Engine & Powertrain06 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Engine make / model | Yunnei / ① YN27 (Type 490, naturally aspirated); ② YN4H055-30VE (China III) | Yunnei / ① YN27 (Type 490, naturally aspirated); ② YN4H055-30VE (China III) |
| Rated power / speed | ① 42 kW @ 2,400 rpm; ② 40 kW @ 2,400 rpm | ① 42 kW @ 2,400 rpm; ② 40 kW @ 2,400 rpm |
| Transmission make / model | Wanliyang 530 gearbox | 545 Xiaofei integrated gearbox |
| Air intake system | Integrated cyclone air-filter assembly | Integrated cyclone air-filter assembly |
| Exhaust treatment | Three-way catalytic converter + water filter | Three-way catalytic converter + water filter |
| Diesel tank dimensions / capacity | 650 × 300 × 250 / 40 L | 650 × 300 × 250 / 40 L |
No configuration differences in this section.
Chassis & Axles07 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Front axle | 1046-650 / 1.6 m · Wanteng / Wanhui | 2048-700 / 1.7 m · Liansheng |
| Rear axle | 1069-660 / 1.6 m · Wanteng / Wanhui | 1069-660 / 1.6 m · Wanteng / Wanhui |
| Frame type / specification | Welded; 140 × 60 × t8 | Welded; 140 × 60 × t8 |
| Front leaf springs | 12 thick × 70 wide × 7 leaves | 12 thick × 70 wide × 7 leaves |
| Rear leaf springs | 12 thick × 70 wide × 7 + 5 leaves | 12 thick × 70 wide × 7 + 5 leaves |
| Tire make / type | Kunlun / Qianjin; all-steel radial tire | Kunlun / Qianjin; all-steel radial tire |
| Tire size / ply rating | 7.00R16 / 14PR | 7.00R16 / 14PR |
No configuration differences in this section.
Cab & Controls02 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Cab type | Mining safety canopy | Mining safety canopy |
| Steering system | Hydraulic steering gear | Hydraulic steering gear |
No configuration differences in this section.
Hydraulic & Brake Systems04 parameters
| Parameter | RWD | 4WD |
|---|---|---|
| Dumping system type / model / stroke | Rear dual cylinders; 3-90; 830 mm | Rear dual cylinders; 3-90; 830 mm |
| Service brake | Air-loss brake / wet-disc brake | Air-loss brake / wet-disc brake |
| Wet-disc brake arrangement | Normally closed; spring applied; hydraulically released | Normally closed; spring applied; hydraulically released |
| Hydraulic oil tank dimensions / capacity | 270 × 290 × 370 / 25 L | 270 × 290 × 370 / 25 L |
No configuration differences in this section.
Configuration Guidance
Built Around Your Operating Conditions
Share these details so HUAYI can understand your site and discuss a suitable configuration.
Tunnel Dimensions
Provide the available width and height, turning space, and any restricted sections.
Clearances · Turning spaceRoad & Gradient
Describe the route surface, gradients, ramp lengths, and key stopping or turning points.
Route surface · Grade · LengthMaterial & Payload
Identify the material, target payload, and loading method used at your site.
Material · Payload · LoadingConfiguration Needs
Note your preferred drive, quantity, destination, or if you would like guidance.
Drive · Quantity · Destination
