35 t · Forward Control Cab

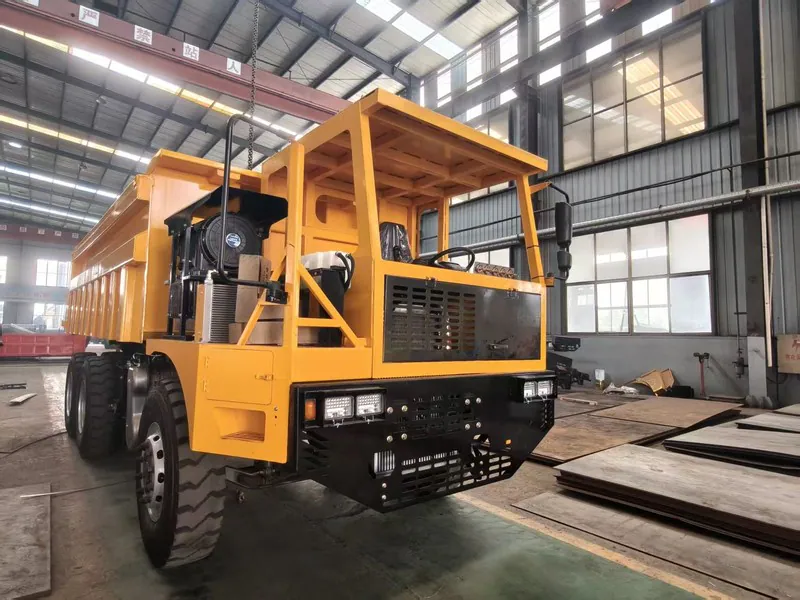

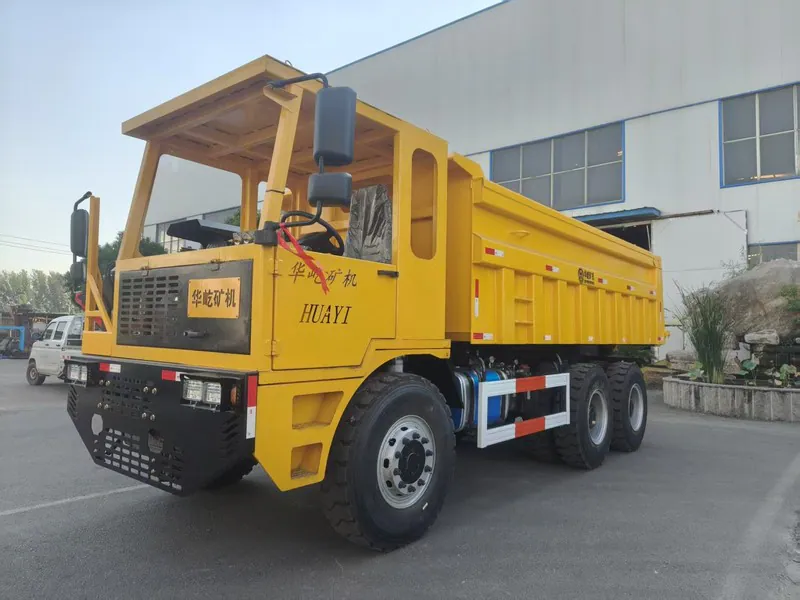

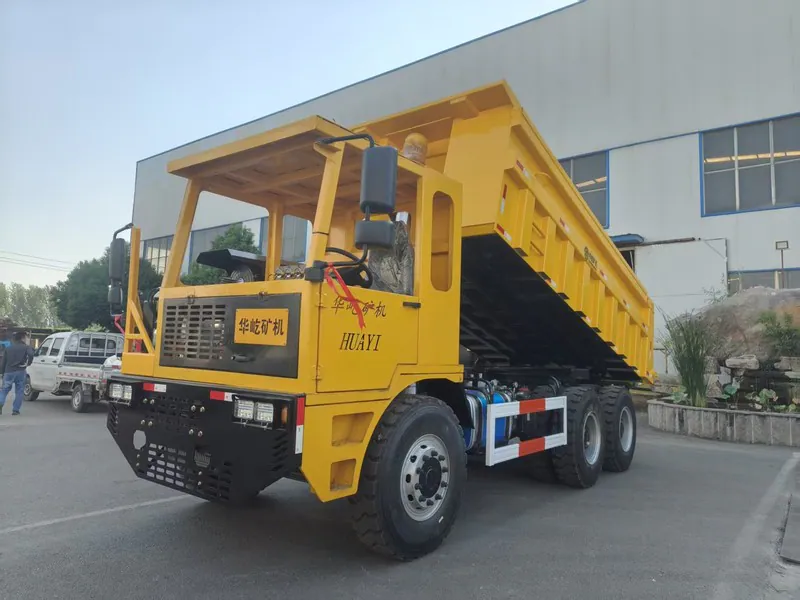

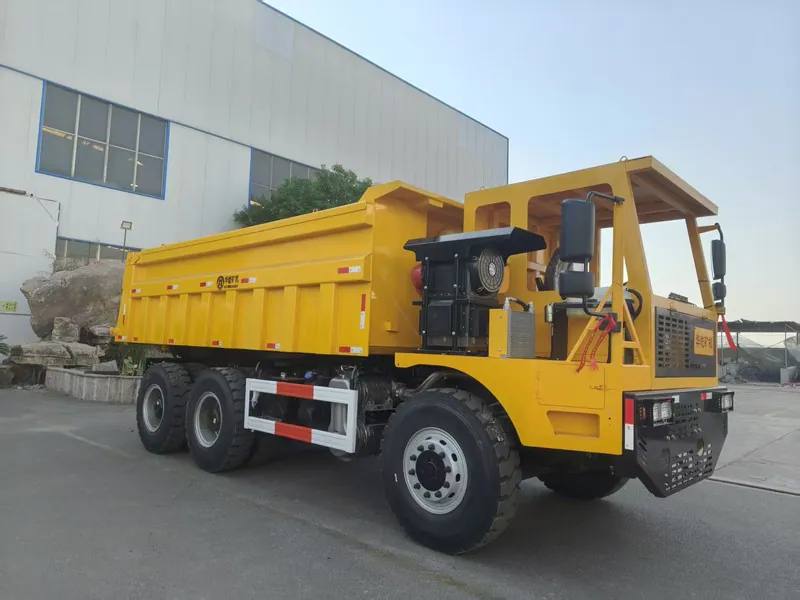

35 t Underground Mining Dump Truck — Forward Control Cab
Review the available specifications for this forward control cab and share the operating conditions HUAYI should consider.
35 t · Forward Control Cab
Technical Specifications
Review the listed specifications for this truck and confirm the latest details and available options with HUAYI before purchase.
Forward Control Cab Specifications
Current versionGeneral Specifications08 parameters
| Parameter | Value |
|---|---|
| Overall dimensions | 7,500 × 2,500 × 2,850 |
| Curb weight | 16,000 kg |
| Rated payload | 35,000 kg |
| Minimum ground clearance | 300 mm |
| Maximum gradeability (loaded) | 14° |
| Approach angle | 25° |
| Wheelbase | 3,250 mm + 1,350 mm |
| Minimum outer turning radius | 10,500 mm |
Cargo Body06 parameters
| Parameter | Value |
|---|---|
| Cargo box dimensions / capacity | 5,400 × 2,500 × 1,300 (16 m³) |
| Cargo box plate thickness | Floor: 16 mm; sides: 10 mm |
| Cargo box type | Rectangular straight dump body |
| Loading height | 2,750 mm |
| Maximum dumping height | 6,100 mm |
| Chassis height | 1,200 mm |
Engine & Powertrain07 parameters
| Parameter | Value |
|---|---|
| Engine make / model | Yuchai / YC6MK375-33 |
| Rated power / speed | 276 kW / 1,900 rpm |
| Maximum torque | 1,650 N·m |
| Transmission make / model | FAST / 10JSD220 transmission |
| Air intake system | Integrated cyclone air filter |
| Exhaust treatment | SCR catalytic muffler |
| Diesel tank dimensions / capacity | 800 × 600 × 500 / 210 L |
Chassis & Axles09 parameters
| Parameter | Value |
|---|---|
| Front axle | Beiben 10T steering axle |
| Rear axle | Beiben hub-reduction drive axle (gear ratio 6.73) |
| Drive arrangement | Tandem rear axle drive |
| Frame type / specification | Cold-riveted frame / 300 × 80 mm (8 + 8 layers) |
| Frame material | DL510 steel |
| Front leaf springs | 18 mm × 90 mm × 11 leaves |
| Rear leaf springs | 28 mm × 90 mm × 12 leaves |
| Tire make / type | Kunlun / all-steel radial tires |
| Tire size / ply rating | 12.00R20 / 20PR |
Cab & Controls04 parameters
| Parameter | Value |
|---|---|
| Cab type | Multi-function mining cab |
| Cab configuration | Heating and air conditioning, LCD instrument panel, suspension seat, dual wipers, fire extinguisher, safety hammer, etc. |
| Steering system | Hydraulic power steering |
| Safety assist | High-safety relief valve |
Hydraulic & Brake Systems05 parameters
| Parameter | Value |
|---|---|
| Dumping system type / stroke | Front-mounted cylinders / 5-stage / 160–4,280 mm |
| Service brake | Air brakes / wet-disc brake |
| Wet-disc brake operation | Normally open; integrated service and parking brake |
| Auxiliary brake | Engine exhaust brake |
| Hydraulic oil tank dimensions / capacity | 440 × 550 × 400 / 85 L |
Configuration Guidance
Built Around Your Operating Conditions
Share these details so HUAYI can understand your site and discuss a suitable configuration.
Tunnel Dimensions
Provide the available width and height, turning space, and any restricted sections.
Clearances · Turning spaceRoad & Gradient
Describe the route surface, gradients, ramp lengths, and key stopping or turning points.
Route surface · Grade · LengthMaterial & Payload
Identify the material, target payload, and loading method used at your site.
Material · Payload · LoadingConfiguration Needs
Note your preferred cab style, quantity, destination, or if you would like guidance.
Cab style · Quantity · Destination
