25 t · Forward Control Cab

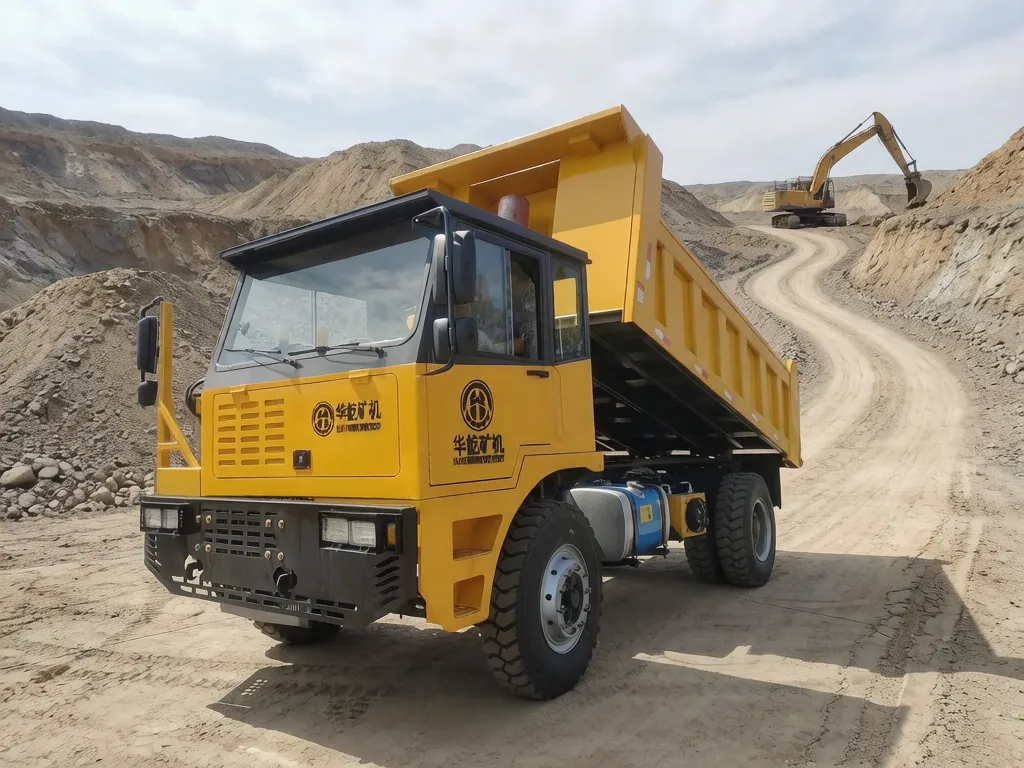

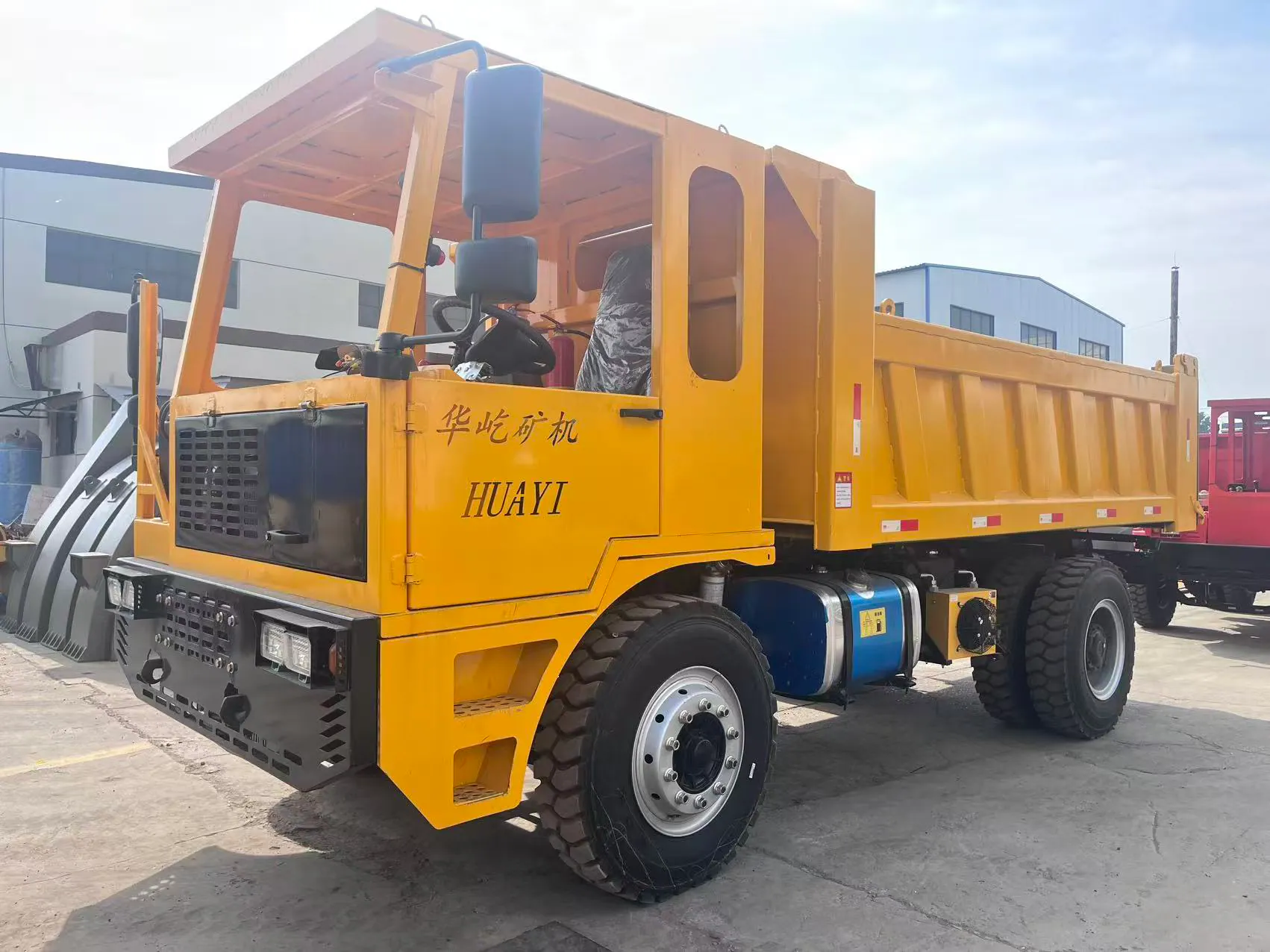

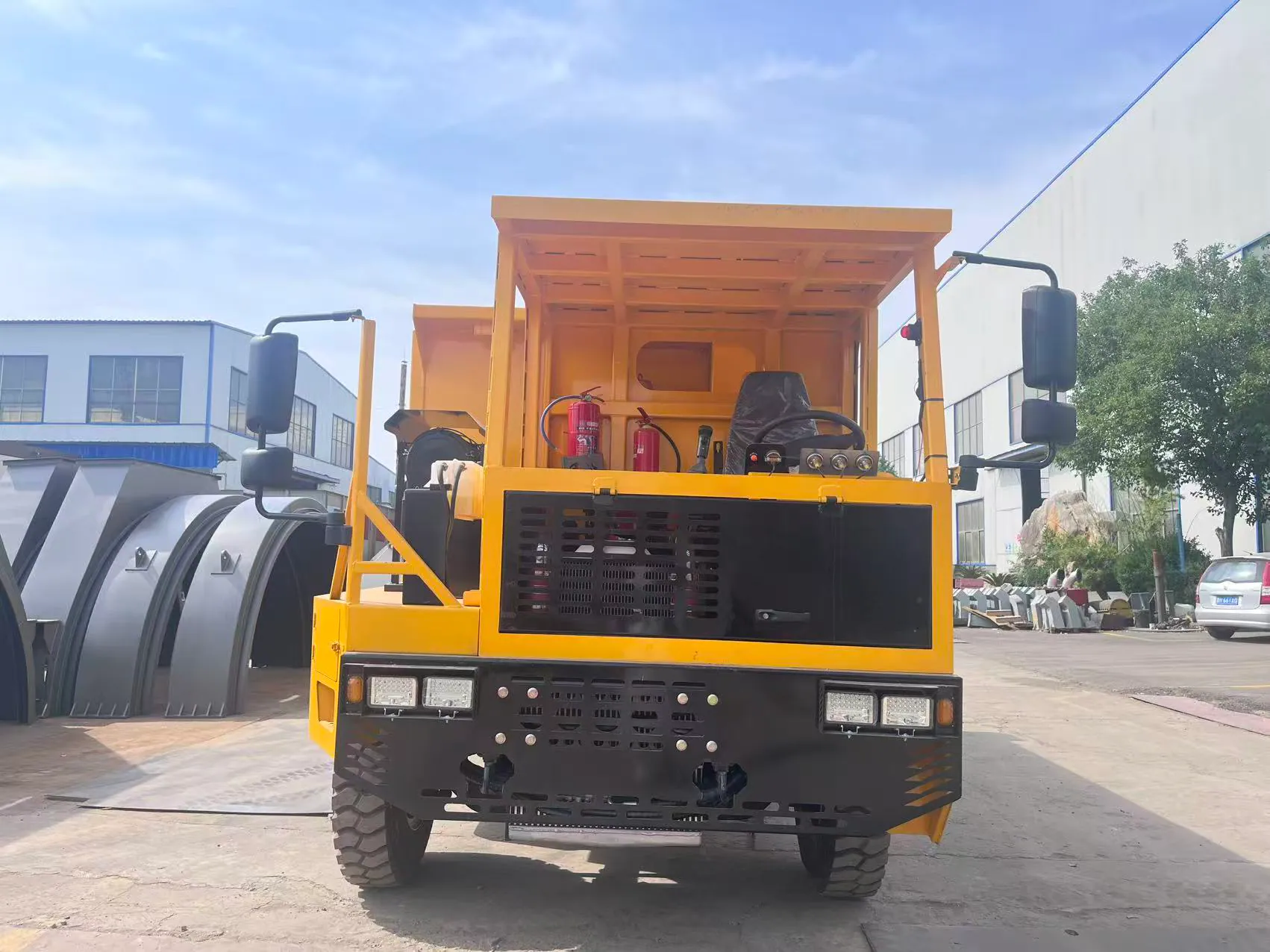

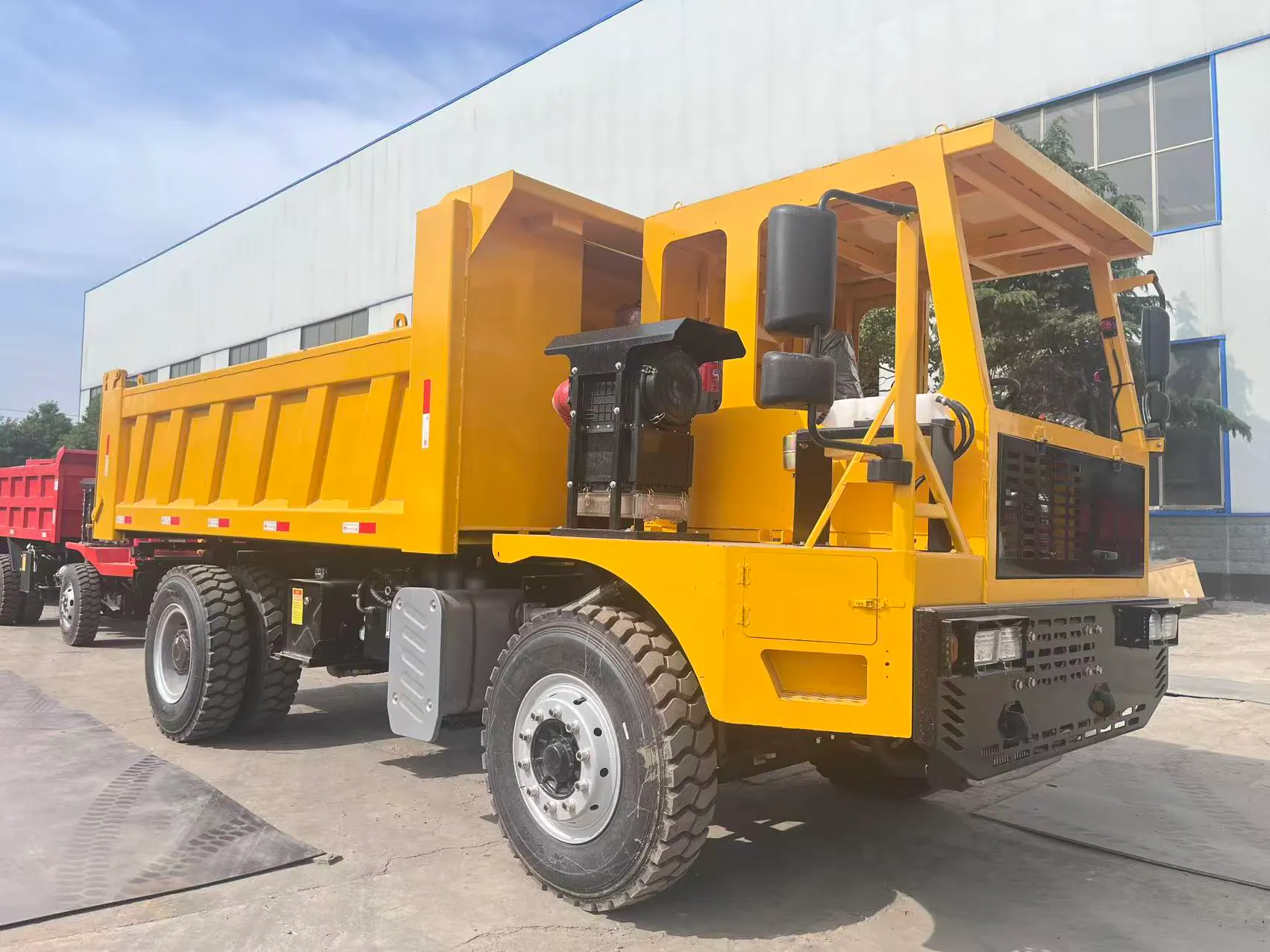

25 t Underground Mining Dump Truck — Forward Control Cab
Review the available specifications for this forward control cab and share the operating conditions HUAYI should consider.
25 t · Forward Control Cab
Technical Specifications
Choose a cab style to view its dedicated product page. Confirm the latest specifications and available options with HUAYI before purchase.
Forward Control Cab Specifications
Current versionGeneral Specifications08 parameters
| Parameter | Value |
|---|---|
| Overall dimensions | 6,500 × 2,480 × 2,600 |
| Curb weight | 11,000 kg |
| Rated payload | 25,000 kg |
| Minimum ground clearance | 280 mm |
| Maximum gradeability (loaded) | 14° |
| Approach angle | 25° |
| Wheelbase | 3,580 mm |
| Minimum outer turning radius | 10,000 mm |
Cargo Body06 parameters
| Parameter | Value |
|---|---|
| Cargo box dimensions / capacity | 4,500 × 2,450 × 1,000 (10 m³) |
| Cargo box plate thickness | Floor: 12 mm; sides: 8 mm |
| Cargo box type | Rectangular straight dump body |
| Loading height | 2,400 mm |
| Maximum dumping height | 5,000 mm |
| Chassis height | 1,150 mm |
Engine & Powertrain07 parameters
| Parameter | Value |
|---|---|
| Engine make / model | Yuchai Power / YC6L290-33 |
| Rated power / speed | 213 kW / 2,200 rpm |
| Maximum torque | 1,100 N·m |
| Transmission make / model | Fast Gear / 10JS200 |
| Air intake system | Integrated cyclone air filter |
| Exhaust treatment | Three-way catalytic converter + water filter |
| Diesel tank dimensions / capacity | 800 × 600 × 500 / 210 L |
Chassis & Axles08 parameters
| Parameter | Value |
|---|---|
| Front axle | Beiben 9T steering axle |
| Rear axle | Beiben cast hub-reduction drive axle (gear ratio 6.73) |
| Drive arrangement | Single rear axle drive |
| Frame type / specification | Cold-riveted / 280 × 80 (8 + 8 + 6, triple layer) |
| Front leaf springs | 16 mm thick × 90 mm wide × 10 leaves |
| Rear leaf springs | 20 mm thick × 90 mm wide × (8 leaves + 6 leaves) |
| Tire make / type | Kunlun, Qianjin / all-steel radial tire |
| Tire size / ply rating | 10.00R20 / 18PR |
Cab & Controls04 parameters
| Parameter | Value |
|---|---|
| Cab type | Forward Control Cab |
| Cab configuration | Leather seat; HVAC optional |
| Steering system | Hydraulic power steering |
| Safety assist | Height limit device |
Hydraulic & Brake Systems04 parameters
| Parameter | Value |
|---|---|
| Dumping system type / stroke | Front-mounted cylinders / 5-stage / 160–3,600 mm |
| Service brake | Air brakes / wet-disc brake |
| Wet-disc brake operation | Normally closed; spring applied; hydraulically released |
| Hydraulic oil tank dimensions / capacity | 440 × 550 × 400 / 85 L |
Configuration Guidance
Built Around Your Operating Conditions
Share these details so HUAYI can understand your site and discuss a suitable configuration.
Tunnel Dimensions
Provide the available width and height, turning space, and any restricted sections.
Clearances · Turning spaceRoad & Gradient
Describe the route surface, gradients, ramp lengths, and key stopping or turning points.
Route surface · Grade · LengthMaterial & Payload
Identify the material, target payload, and loading method used at your site.
Material · Payload · LoadingConfiguration Needs
Note your preferred cab style, quantity, destination, or if you would like guidance.
Cab style · Quantity · Destination
