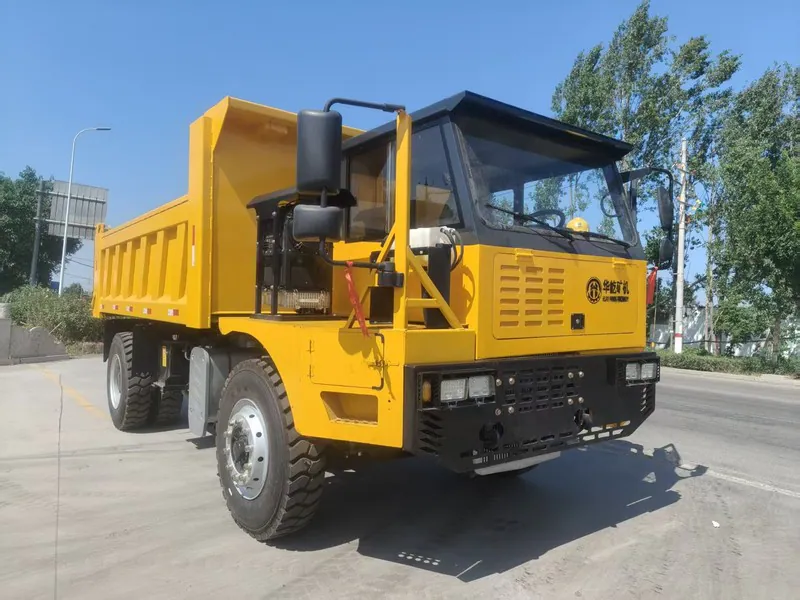

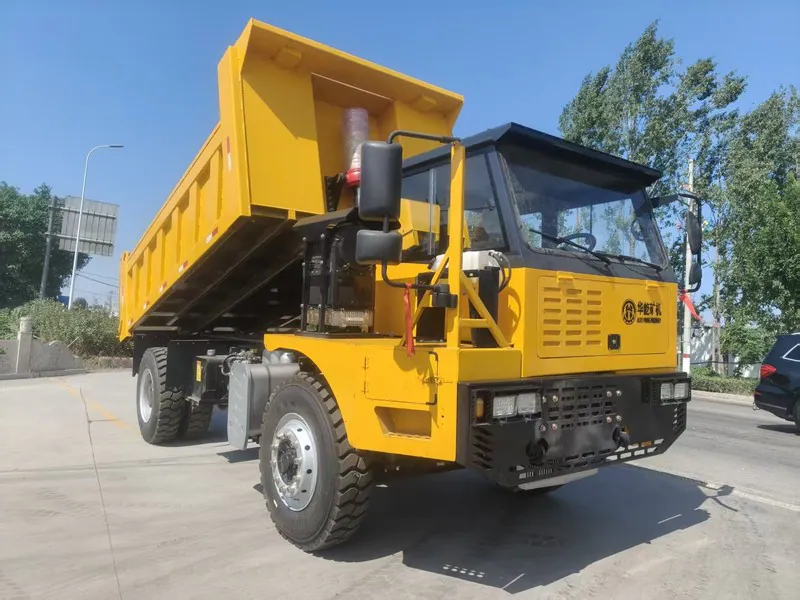

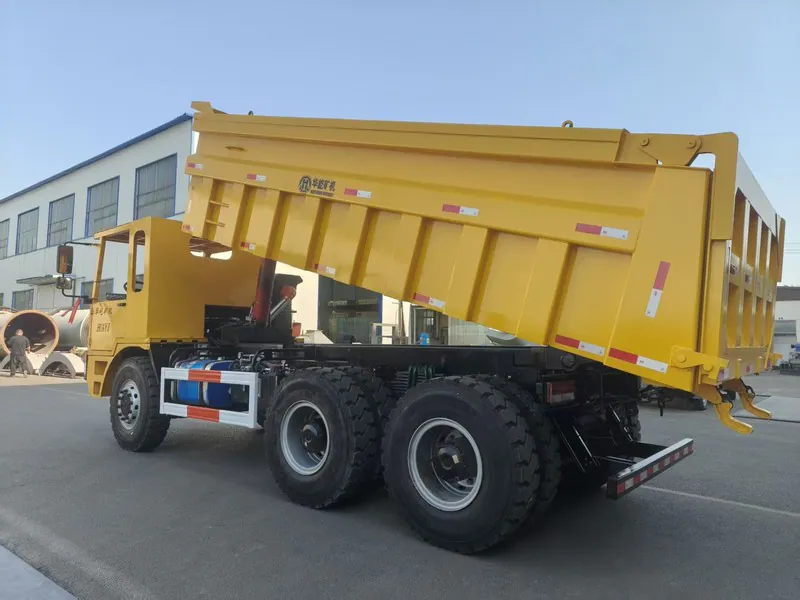

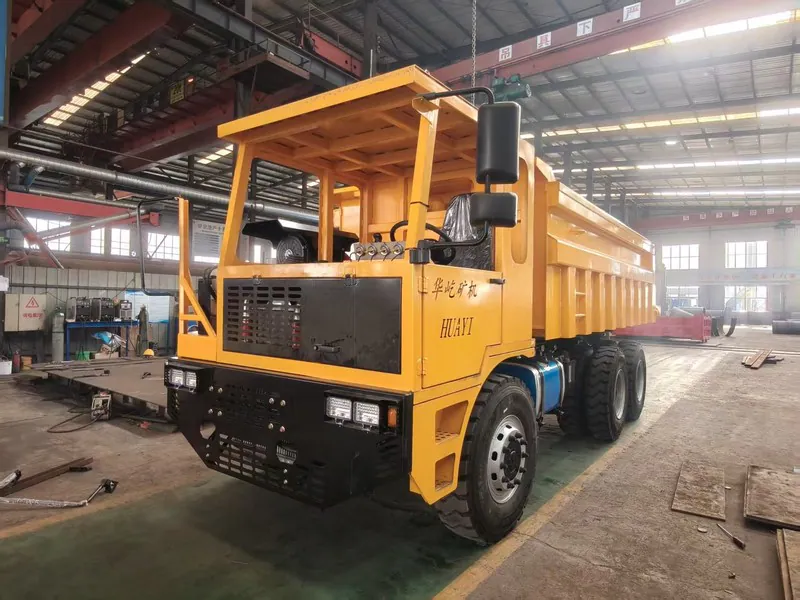

30 t Underground Mining Dump Truck — Forward Control Cab
Review the available specifications for this forward control cab and share the operating conditions HUAYI should consider.
30 t · Forward Control Cab
Technical Specifications
Choose a cab style to view its dedicated product page. Confirm the latest specifications and available options with HUAYI before purchase.
Forward Control Cab Specifications
Current versionGeneral Specifications08 parameters
| Parameter | Value |
|---|---|
| Overall dimensions | 7,300 × 2,500 × 2,750 |
| Curb weight | 15,500 kg |
| Rated payload | 30,000 kg |
| Minimum ground clearance | 280 mm |
| Maximum gradeability (loaded) | 14° |
| Approach angle | 25° |
| Wheelbase | 3,100 mm + 1,350 mm |
| Minimum outer turning radius | 10,000 mm |
Cargo Body06 parameters
| Parameter | Value |
|---|---|
| Cargo box dimensions / capacity | 5,200 × 2,500 × 1,200 (14 m³) |
| Cargo box plate thickness | Floor: 16 mm; sides: 10 mm |
| Cargo box type | Rectangular straight dump body |
| Loading height | 2,650 mm |
| Maximum dumping height | 5,900 mm |
| Chassis height | 1,150 mm |
Engine & Powertrain07 parameters
| Parameter | Value |
|---|---|
| Engine make / model | Yuchai / YC6L340-33 |
| Rated power / speed | 250 kW / 2,200 rpm |
| Maximum torque | 1,150 N·m |
| Transmission make / model | FAST / 10JSD220 transmission |
| Air intake system | Integrated cyclone air filter |
| Exhaust treatment | SCR catalytic muffler |
| Diesel tank dimensions / capacity | 800 × 600 × 500 / 210 L |
Chassis & Axles09 parameters
| Parameter | Value |
|---|---|
| Front axle | Beiben 10T steering axle |
| Rear axle | Beiben hub-reduction drive axle (gear ratio 6.73) |
| Drive arrangement | Tandem rear axle drive |
| Frame type / specification | Cold-riveted frame / 300 × 80 mm (8 + 8 layers) |
| Frame material | DL510 steel |
| Front leaf springs | 18 mm × 90 mm × 11 leaves |
| Rear leaf springs | 28 mm × 90 mm × 12 leaves |
| Tire make / type | Kunlun / all-steel radial tires |
| Tire size / ply rating | 10.00R20 / 18PR |
Cab & Controls04 parameters
| Parameter | Value |
|---|---|
| Cab type | Multi-function mining cab |
| Cab configuration | Suspension system, manual hydraulic cab tilting, heating and air conditioning, LCD instrument panel, suspension seat, dual wipers, fire extinguisher, safety hammer, etc. |
| Steering system | Hydraulic power steering |
| Safety assist | High-safety relief valve |
Hydraulic & Brake Systems05 parameters
| Parameter | Value |
|---|---|
| Dumping system type / stroke | Front-mounted cylinders / 5-stage / 160–4,280 mm |
| Service brake | Air brakes / wet-disc brake |
| Wet-disc brake operation | Normally open; integrated service and parking brake |
| Auxiliary brake | Engine exhaust brake |
| Hydraulic oil tank dimensions / capacity | 440 × 550 × 400 / 85 L |
Configuration Guidance
Built Around Your Operating Conditions
Share these details so HUAYI can understand your site and discuss a suitable configuration.
Tunnel Dimensions
Provide the available width and height, turning space, and any restricted sections.
Clearances · Turning spaceRoad & Gradient
Describe the route surface, gradients, ramp lengths, and key stopping or turning points.
Route surface · Grade · LengthMaterial & Payload
Identify the material, target payload, and loading method used at your site.
Material · Payload · LoadingConfiguration Needs
Note your preferred cab style, quantity, destination, or if you would like guidance.
Cab style · Quantity · Destination
